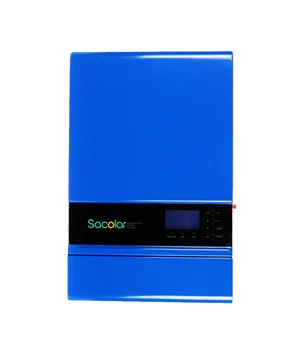

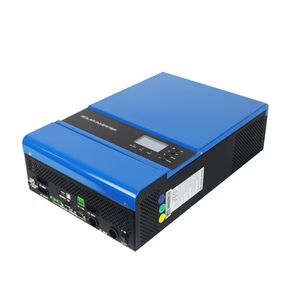

5KVA / 5KW Pure Sine Wave Axpert Type Inverter

Sacolar - WiFi compatible- 5KVA / 5KW Pure Sine Wave Axpert Type Inverter / 80A Low Voltage MPPT / Parallel

Built-in:

• 80A MPPT low voltage charge controller (from PV)
• Inverter charger (grid to battery, solar to battery)
• Bypass for grid to usage

Max Watt Output:

• Continuous: 5kW / 5 kVA
• Surge (5 seconds): 10kW

Charging Source Settings:

• Can be set: Solar first, grid first, solar & grid, solar only
• Solar only: 80A (maximum)
• Grid only: up to 60A
• Combination solar & grid: up to 140A

Output (discharge) Source:

• Solar first - Can be set (BATTERIES REQUIRED!)
• Utility first (bypass) - Can be set
• Prioritized solar/battery/utility - Can be set

Monitoring & Setting:

• Computer Connection: Serial port
• LCD screen
• WiFi / GPRS remote monitoring (Optional)
• BMS / RS485 port.
• Communication with LiFePO4 battery via BMS port.

Expansion: Single Inverter

• PV Panels minimum: 500W
• PV Panels maximum: 4400W
• Batteries minimum: 4 x 100Ah 12V
• Peak Efficiency: 90%
• No Load Power Consumption: <50watt

Expansion: More Inverters

• Single-phase: Up to 6 units = 30kVA
• Three-phase: Up to 6 units in total. Different configurations, maximum 2 units per phase (2 + 2 + 2).
• Please take note that the warranty will only be valid for up to 3 inverters connected in parallel. Contact us for approval on warranty for more than 3 inverters connected in parallel.
